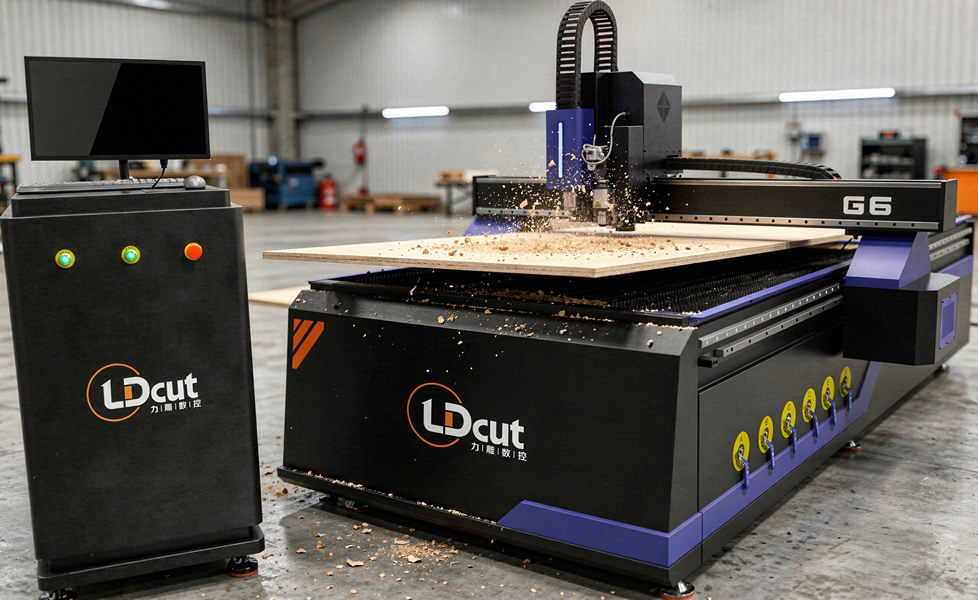

LDCUT G6 Series Digital Flatbed Cutter
Adopting heavy-duty bed structure and gantry movement design, combined with high-precision imported components, specialized for PVC, acrylic spray pattern edge-following cutting.
Adopting heavy-duty bed structure and gantry movement design, combined with high-precision imported components, specialized for PVC, acrylic spray pattern edge-following cutting.
Engineered for efficiency and precision.
40,000 RPM high-speed, low-noise spindle, featuring high precision, high speed, constant torque, low runout, and exceptional stability.
Idle speed up to 100m/min, significantly improving production efficiency.
CCD cameras accurately locate various materials marked with registration marks, ensuring perfect registration and precise cutting.
Repeat positioning accuracy ±0.02mm, processing accuracy ±0.01mm, ensuring perfect cutting.
Suitable for multiple industries, meeting various complex cutting needs
It effortlessly slices through PVC materials with pinpoint accuracy and smooth, burr-free edges. High efficiency, zero waste, and designed to elevate your production line.
Through rapid blade movement, achieves material cutting processing, can process PP paper, adhesive, reflective materials, car stickers, ABS plastic, thin plastic, rubber cloth, imitation leather, KT board, PVC foam board, cardstock, soft glass, canvas, photo cloth and other materials.
Can process soft glass, PVC, honeycomb board, KT board, corrugated cardboard, vertical corrugated board, gray board and other materials for grooving and folding.
Through circular wheels rolling over material, creates creasing effects on material, processes corrugated cardboard, cardstock, corrugated plastic board and other materials for creasing and folding.
Achieves cutting through only the upper layer without cutting the lower layer material, mainly used for car stickers, adhesive labels, PP adhesive, color-white-color and other materials for semi-cut processing.
Intelligent storage of multiple material cutting solutions, intelligent fully automatic feeding system, quickly and accurately achieves intelligent cutting of various materials.
The LDCUT G6 pairs a 40,000/60,000 rpm spindle with an oscillating knife to precision-cut rigid and semi-rigid materials. It is the go-to model for PVC, acrylic, and plexiglass work.
The G6 handles PVC, acrylic, plexiglass, ABS, and composite panels with clean, burr-free edges at ±0.01 mm accuracy — ideal where a knife-only machine struggles with rigid stock.
Read the full Material Compatibility Guide →Where the G6 excels:
Compare models or read our buyer’s guide before requesting a quote:
Diverse professional tool heads, meeting precision cutting needs for various materials

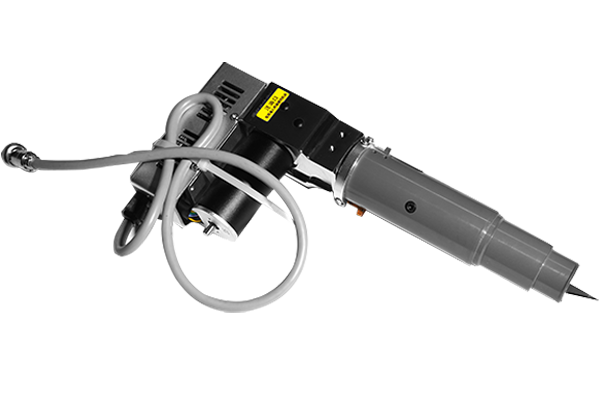

Oscillating Tool. High-frequency vibration cutting technology, suitable for precise cutting of thick materials, smooth cut without burrs

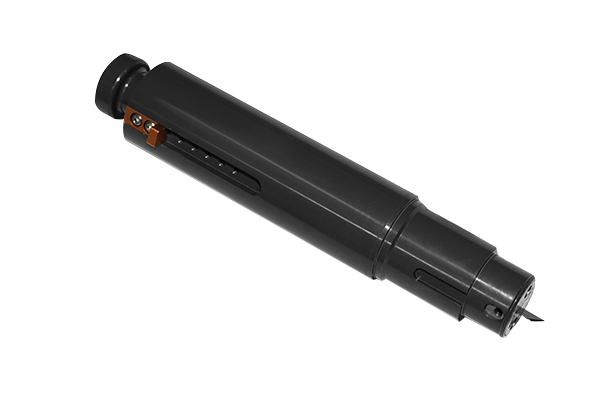

Drag Cutting Tool. Suitable for precise cutting of thin materials, 360-degree free rotation, achieving complex pattern cutting

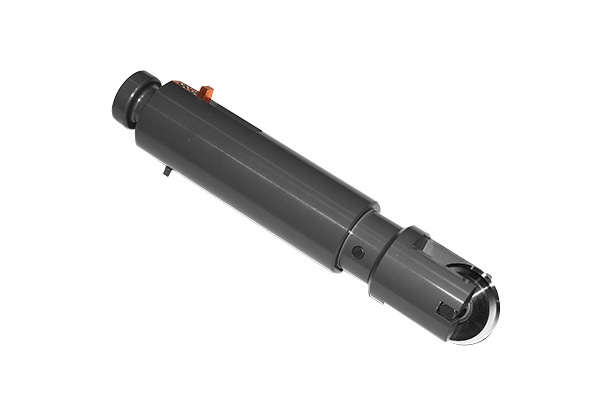

Creasing cutting tool. Professional creasing tool, providing precise creases for cardboard, cardstock and other materials, improving packaging forming quality

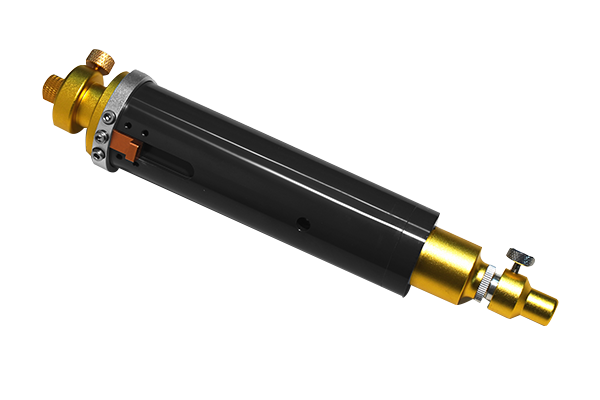

Kiss cut tool. Precise kiss-cut technology, cuts only surface material without damaging backing paper, suitable for precise separation of multi-layer materials

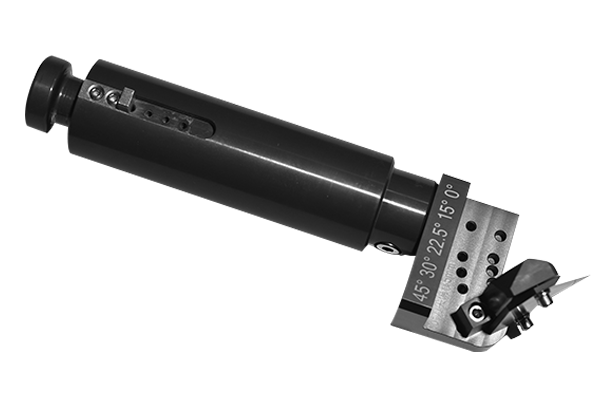

V-cutting tool. V-cut technology, creates V-grooves on material surface, facilitating folding and forming, especially suitable for thick boards
Common questions about the LDCUT G6 digital flatbed cutter.
The LDCUT G6 is built for rigid and semi-rigid materials. Its 40,000/60,000 rpm spindle plus oscillating knife cleanly cut PVC, acrylic, plexiglass, ABS, and composite panels at ±0.01 mm accuracy.
All LDCUT models support five quick-swap tool heads: EOT (oscillating knife) for thick materials up to 50 mm, DCT (drag knife) for thin films and vinyl (0.1–3 mm), CCT (creasing) for cartons, KCT (kiss-cut) for labels and stickers, and VCT (V-cut) for grooving. Heads swap in under 3 minutes, so you can switch processes on one machine. Not sure which to use? Share your material with our team for a recommendation.
The LDCUT G6 reaches a maximum idle travel speed of 100 m/min, with ±0.01 mm processing accuracy and a 40,000/60,000 rpm spindle for rigid materials. A 0.025 mm CCD camera handles vision positioning.
The LDCUT G6 is widely used in signage and display production (acrylic letters, PVC displays), automotive trim, and rigid panel fabrication where clean, burr-free edges on PVC and acrylic are essential.
More questions? Visit the LDCUT FAQ or contact our team.
